- AS 2047 Certified for Australian Standards
Engineered and tested for superior performance: 300Pa water resistance, low air infiltration, 1600Pa wind pressure resistance, and 3000Pa ultimate strength, ensuring lasting durability and protection in harsh climates. - Heavy-Duty Load Capacity

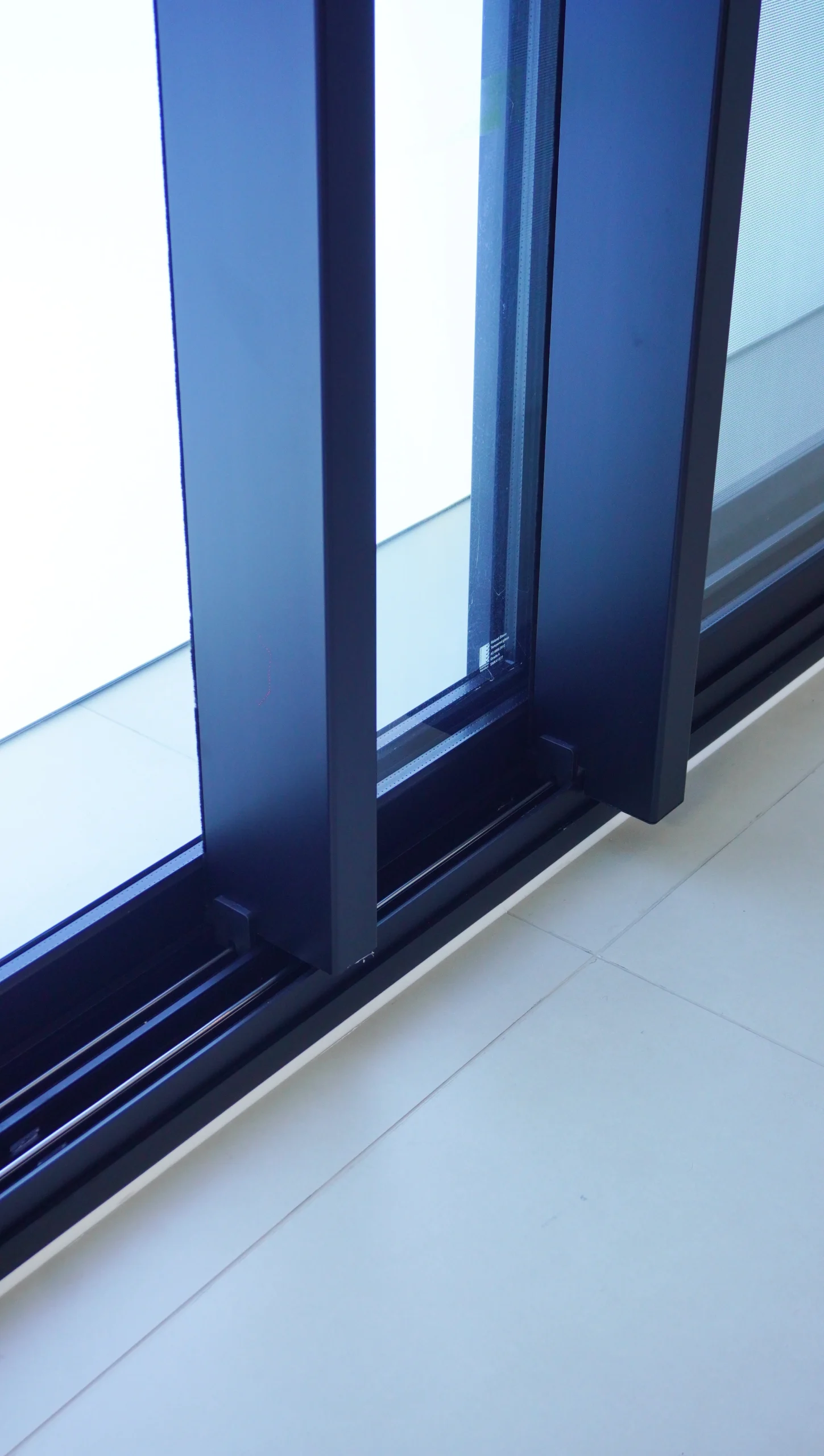

Equipped with 100kg robust rollers and tracks, allowing smooth and stable operation even for large multi-panel configurations — built to perform in high-use environments. - Secure Locking System
Fitted with the Doric Sliding Door D-LOCK, made from high-quality stainless steel, providing both security and elegant design for residential and commercial applications. - Advanced Weatherproofing
Premium EPDM weather strips ensure superior air-tightness and water resistance, keeping interiors comfortable and energy-efficient year-round. - Pre-Installed Australian Sub-Frames
Designed for quick retrofitting into brick or timber walls, simplifying installation and reducing project timelines — ideal for both new builds and renovations. - Elegant, Customizable Finish
Available in a wide range of powder-coated color options with a minimalist frame profile, offering both aesthetic appeal and corrosion resistance. - Dimension of Frame
(Thickness)2800 mm (Height) x 3800 mm (Width) x 150 mm
Certification & Quality Assurance

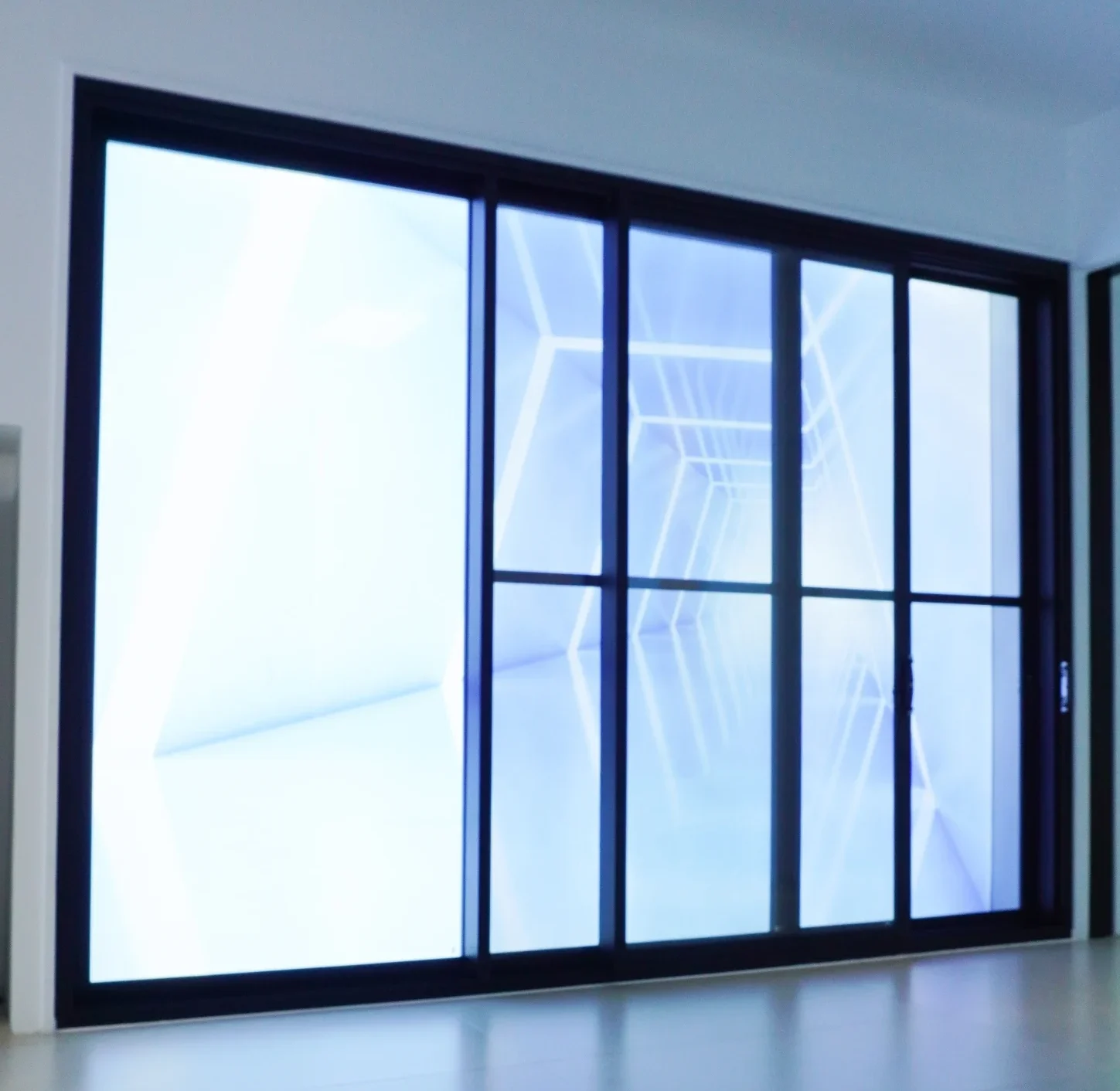

The 150 Series Stacker Sliding Door complies with AS 2047, the benchmark for Australian window and door performance. Tested for air, water, and structural integrity to ensure reliable operation and long-lasting protection.
Profile Colors Option
- Classic colors: Matt Black, Light Grey, Monument, White
- Other colors: RAL Color, Dulux color, International Color Card
- Surface treatment : Powder coating, anodise, PVDF…
- Corrosion resistant, 10+ years warranty
Classic Colors
Glass Option
- AS1288, AS2208, 4666, Australia Certificate
- Thickness of single glass: 5-20mm
- Glass types: Single glass, Double glass, Triple glass, Laminated glass, Tinted glass, Hot bending glass, Frosted glass, Toughened glass, Low-e coated glass
- Special performance glass: Fireproof glass, Bulletproof glass，tinted, low-e, sound-proof and burglarproof

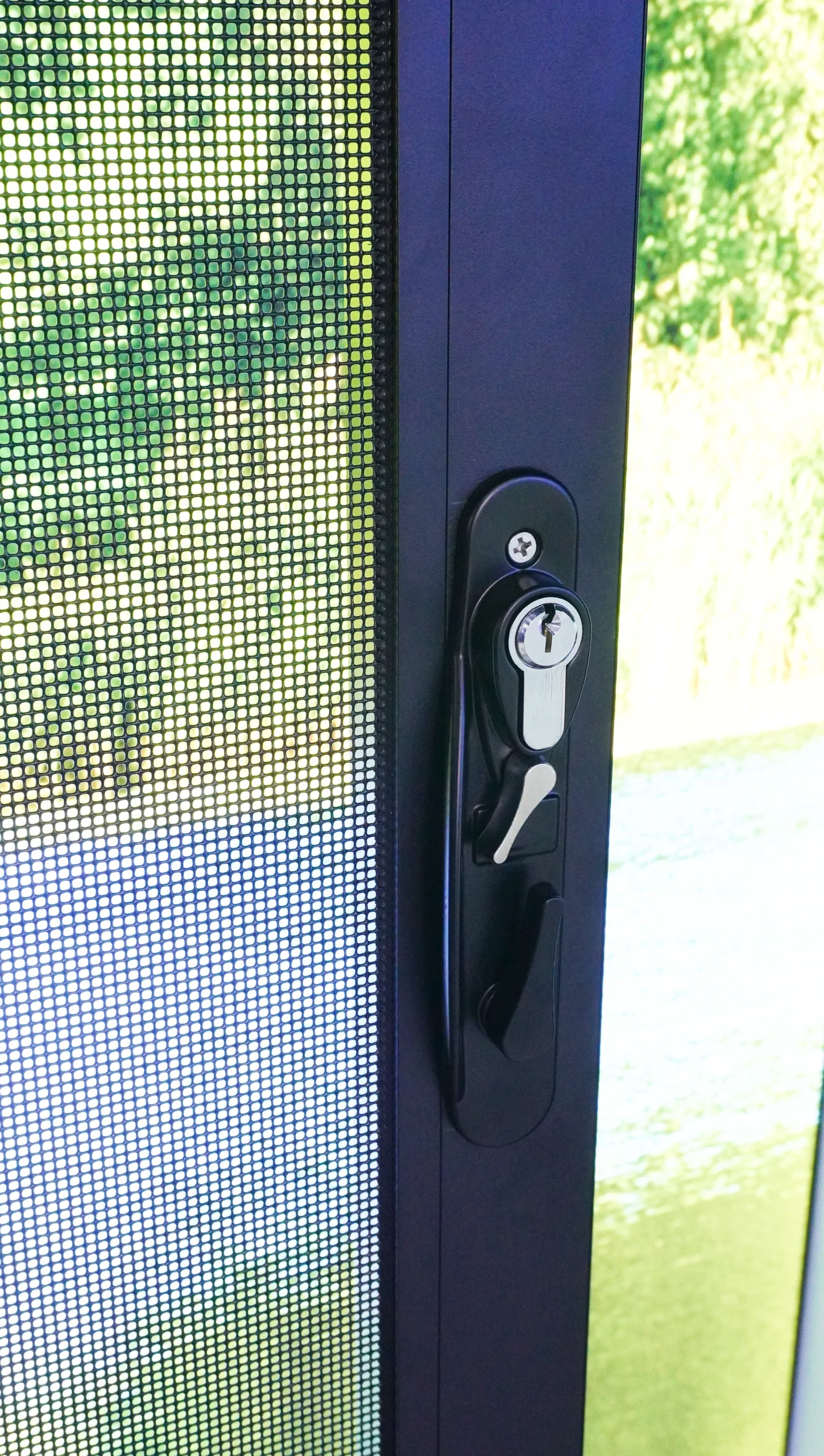

150 Series Sliding Door Lock
Advantages
- Two large 6mm thick pressure cast opposing action hook tongues
- Standard model offers selectable deadlatched or deadlocked security functions.
- Utilises industry standard C4 pin cylinder system and can be keyed alike to existing entrance doors.
- Industry benchmark keeper adjustment of 6mm making installation and on-site adjustment easier.
- Utilises industry standard 82mm door preparation detail, allowing retro fit to most existing Sliding Patio Door Locks.
- Accepts all Doric external pulls
- Incorporates an anti-crash feature to prevent keeper damage
- Unique and smooth Twiin™ push/pull actuator operation
- All locks form part of the Doric One Key™ solution and can be keyed alike to other window locks
FAQS
A multi-panel sliding door where two or three panels slide and stack to one side, creating a wider opening than standard sliders.
AS 2047 certified with:
300Pa water resistance
low air infiltration
1600Pa wind pressure
3000Pa ultimate strength
Up to 100kg per panel, ensuring stable operation.
A secure Doric D-Lock, designed for stacker systems.
Yes, making installation quick and compliant with local building practices.
Yes, this is one of the best solutions for wide openings in living rooms, outdoor areas, and commercial spaces.
Yes—double-glazed, Low-E, laminated, and argon-filled options are all available.
Yes, the track and roller system is designed for effortless movement and long-term stability.
