- AS 2047 Certified Performance
- 600Pa water resistance
- Low air infiltration
- 2000Pa wind pressure tested
- 4000Pa ultimate strength
- Heavy-Duty Load Capacity
Designed with robust hardware to support up to 80kg, ensuring stable performance and smooth operation.
- Secure Locking System
Equipped with DORIC Chainwinder hardware, offering reliable locking and easy operation with a sleek look.
- Weatherproof Sealing
Premium EPDM weather strips provide long-lasting protection against air and water leakage, ensuring thermal efficiency and noise reduction.
- Australian Sub-Frames
Pre-installed sub-frames make it simple to retrofit into brick or timber walls—saving installation time and ensuring a perfect fit.
- Dimension of Frame
2500 mm (Height) x 900 mm (Width) x 100 mm (Thickness)
Certification & Quality Assurance

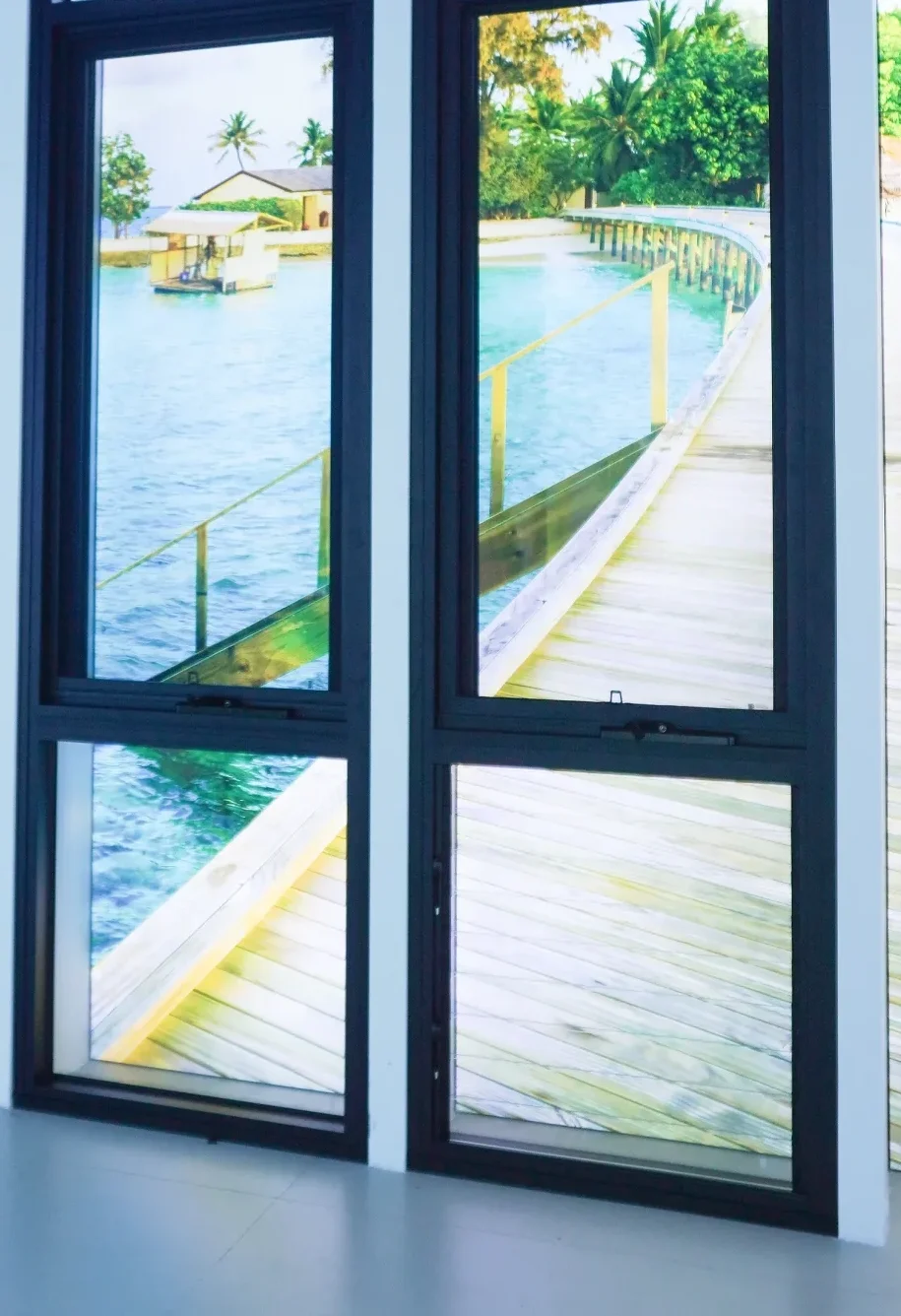

The YUANYI 100 Series Awning Window is AS 2047 certified, meeting Australian standards for strength, air tightness, and water resistance. Each unit is rigorously tested to ensure exceptional performance in challenging environments.
Profile Colors Option
- Classic colors: Matt Black, Light Grey, Monument, White
- Other colors: RAL Color, Dulux color, International Color Card
- Surface treatment : Powder coating, anodise, PVDF…
- Corrosion resistant, 10+ years warranty
Classic Colors
Glass Option
- AS1288, AS2208, 4666, Australia Certificate
- Thickness of single glass: 5-20mm
- Glass types: Single glass, Double glass, Triple glass, Laminated glass, Tinted glass, Hot bending glass, Frosted glass, Toughened glass, Low-e coated glass
- Special performance glass: Fireproof glass, Bulletproof glass，tinted, low-e, sound-proof and burglarproof

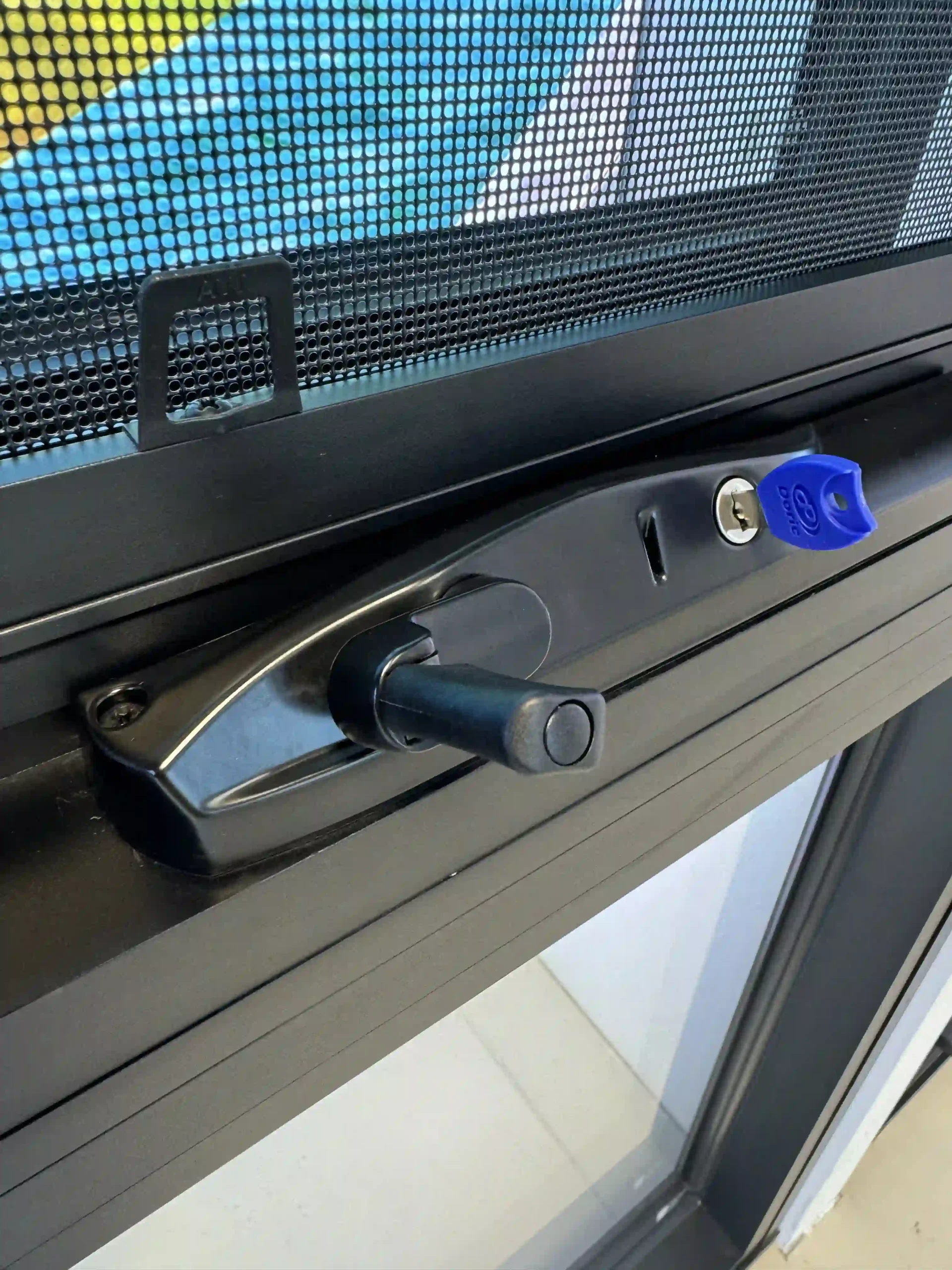

100 Series Awning Window Lock
Advantages
- Designed to complement the shape of the winder. Simply pull to fold down.
- Can be keyed alike to other Doric window or door products.
- Handle can be orientated to match other winders in the house. Simply loosen handle grub screw and re-secure handle in the desired position.
Features
- Inbuilt Restriction Switch to easily restrict chain length where window restriction is required.
- Allows you to clearly see if the winder is in the locked or unlocked position.
- Easylink – a simple one way fitment to simplify installation reducing installation time.
FAQS
It meets AS 2047 standards, passing 600Pa water resistance, low air infiltration, 2000Pa wind pressure, and 4000Pa ultimate strength testing.
You can choose between Doric chainwinders or Kinlong, all corrosion-resistant and smooth to operate.
Yes. Awning windows open outward from the bottom, allowing airflow while keeping rain out.
Premium EPDM weather strips, known for high elasticity, UV resistance, and long-lasting sealing performance.
Yes, making installation fast and compliant with Australian construction methods.
Yes. Low-E, argon-filled, laminated safety glass… all available per energy requirements.
Large awning windows are possible, but size depends on hardware load capacity for safe operation.
Yes, fixed and retractable flyscreens are available.
